Price: $65.99
(as of Apr 22, 2025 20:18:59 UTC – Details)

Product Description

Description:

Used For: 1/6 1/8 1/10 scale Crawler / Buggy / Truck / Airplanes

Waterproof performance:IP67

Stall Torque (10V): 56 kg/cm

Stall Torque (12V): 65 kg/cm

Stall Torque (14V): 70 kg/cm

Speed : 0.13 sec/60°(10V) / 0.10 sec/60°(12V) / 0.09 sec/60°(14V)

Operating Voltage: 10 ~ 14 DC Volts

Dead brand: 1μs

Weight: 83 g

Motor Type: Brushless Motor

Gear Type: Reinforced Steel

Working frequence: 50-333Hz

Operating travel:180°or 270° (PWM 500-2500μs)

Size: 40 x 20 x 42.5 mm ( 1.58 x 0.79 x 1.67 in)

Features:

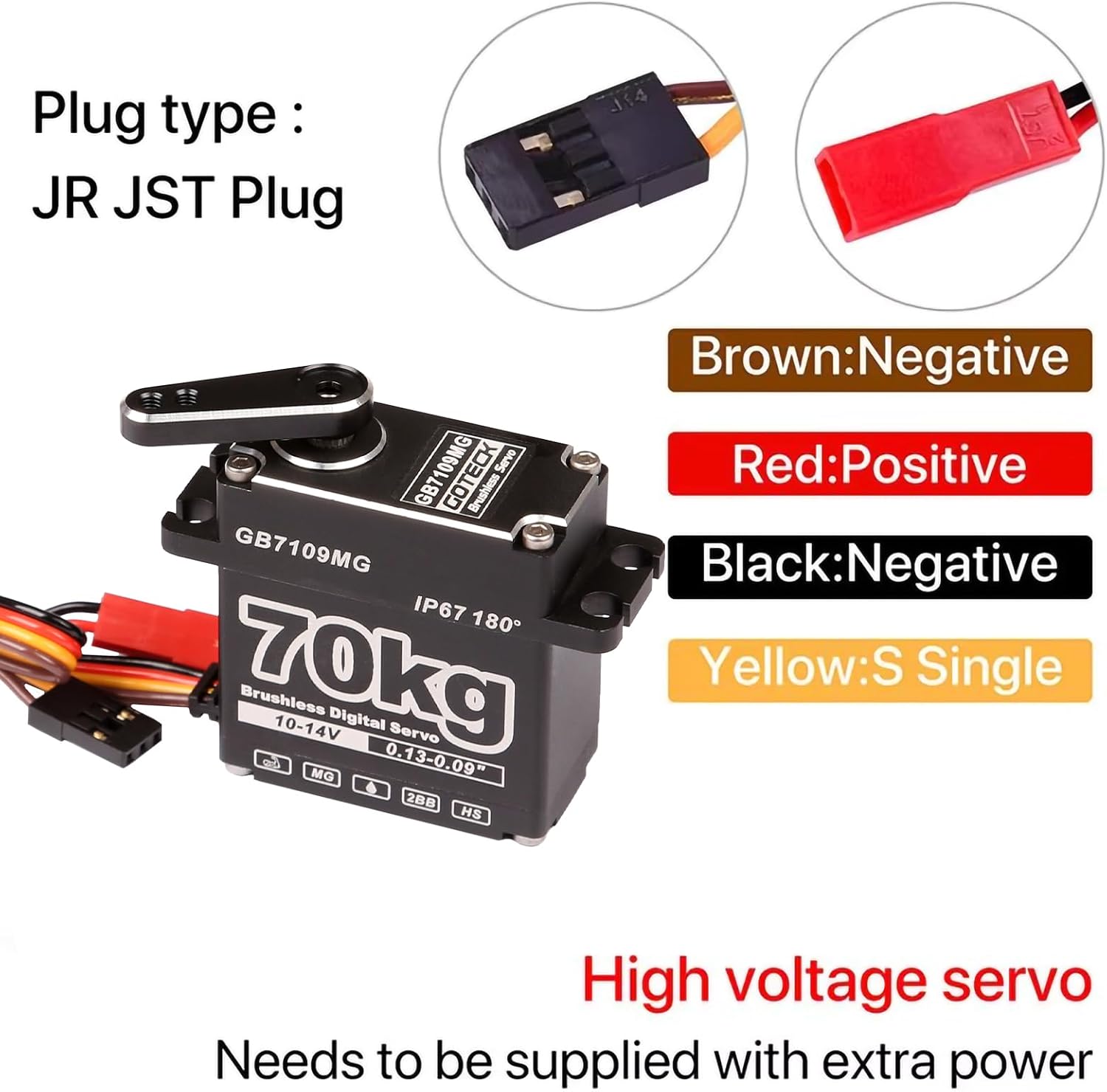

GOTECK GB7109MG Servo is a Brushless Digital Servo,which Feature is Super Speed and High Power!It Delivers Incredible Power and Can Be Used for RC Helicopters,Airplanes,Cars,and Trucks When a Standard Servo Is Required!

Features:

– High performance Brushless digital standard servo

– High-precision metal gears with hard anodizing

– CNC Full Aluminum Case

– Dual ball bearings

Control Method: PWM

Pulse Width: 500~2500 μsec

Bearing Type: Ball Bearing x 2

Temperature: -20℃~60℃

Connector wire length: 280±5mm

Package Includes :

1 X GB7109MG 70KG Brushless Digital Servo

1 X 25T Adjustable Metal Servo Arm

1 X Accessories

GOTECK GB7109MG Servo is a Brushless Digital Servo,which Feature is Super Speed and High Power!It Delivers Incredible Power and Can Be Used for RC Helicopters,Airplanes,Cars,and Trucks When a Standard Servo Is Required!

Description:

Used For: 1/6 1/8 1/10 scale Crawler / Buggy / Truck / Airplanes

Waterproof performance:IP67

Stall Torque (10V): 56 kg/cm

Stall Torque (12V): 65 kg/cm

Stall Torque (14V): 70 kg/cm

Speed : 0.13 sec/60°(10V) / 0.10 sec/60°(12V) / 0.09 sec/60°(14V)

Operating Voltage: 10 ~ 14 DC Volts

Dead brand: 1μs

Weight: 83 g

Motor Type: Brushless Motor

Gear Type: Reinforced Steel

Working frequence: 50-333Hz

Operating travel:180°or 270° (PWM 500-2500μs)

Size: 40 x 20 x 42.5 mm ( 1.58 x 0.79 x 1.67 in)

Features:

– High performance Brushless digital standard servo

– High-precision metal gears with hard anodizing

– CNC Full Aluminum Case

– Dual ball bearings

Control Method: PWM

Pulse Width: 500~2500 μsec

Bearing Type: Ball Bearing x 2

Temperature: -20℃~60℃

Connector wire length: 280±5mm

Package Includes :

1 X GB7109MG 70KG Brushless Digital Servo

1 X 25T Adjustable Metal Servo Arm

1 X Accessories

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 2

3.5 out of 5 stars 16

3.5 out of 5 stars 16

3.5 out of 5 stars 16

5.0 out of 5 stars 21

3.5 out of 5 stars 16

Price

$49.99$49.99 $69.99$69.99 $79.99$79.99 $128.99$128.99 $42.99$42.99 $39.99$39.99

New

✓

✓

✓

✓

✓

✓

Standard 70KG high torque Brushless servo equipped with reinforced steel gear with PINS, three ball bearing, full Aluminium housing for fast heat dissipation, accuracy.
GOTECK steering digital servo motor with IP67 Waterproof design, which make servo still work normally when water enters into the servo.
70KG Servo TORQUE Stable, low noise, waterproof, shock-proof, dust-proof, advanced linearity and accuracy. The maximum torque of this steering servo is up to 70kg/cm @14V and speed up to 0.09sec/60°@14V
This GOTECK steering digital servo is suitable for 1/8 1/10 buggy, monster truck, RC car, on road, off road, crawler, boat, plane, helicopter, robot.
Package includes : 1 X GB7109MG 70KG Brushless Digital Servo(180 Degree) ; 1 X 25T Adjustable Metal Servo Arm ; 1 X Accessories
